OpenCV Starry Sky Panorama Stitcher

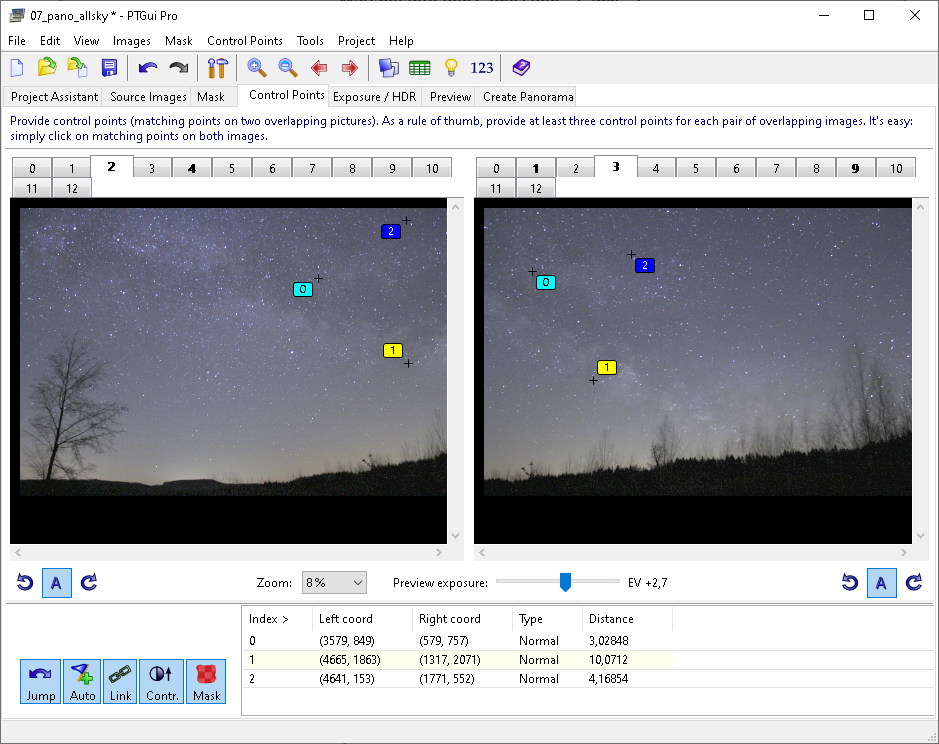

• PTGui (https://ptgui.com/) does an excellent stitching job but it does not recognize stars as features. On each combination of 2 starry sky image, at least 3 features on each have to be labeled manually . Taking 21 images of the night sky yields at least 36 overlaps between images. For each overlap at least 3 stars have to be labeled manually on both images of the overlap. Pretty annoying.

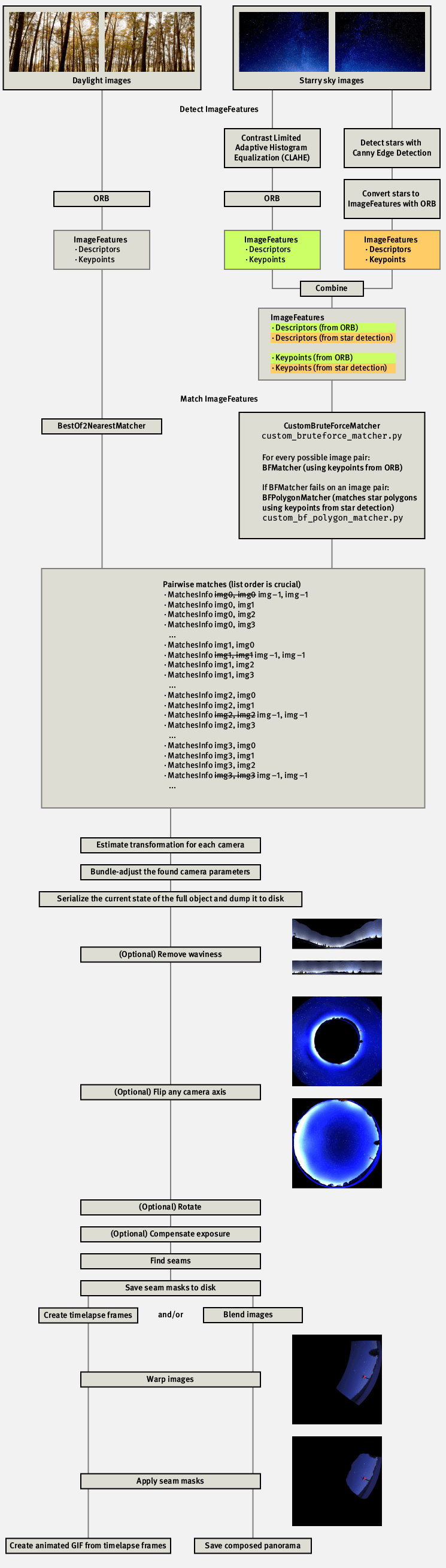

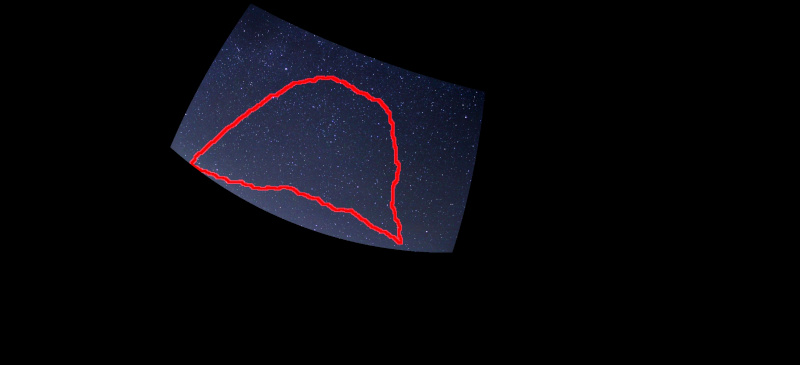

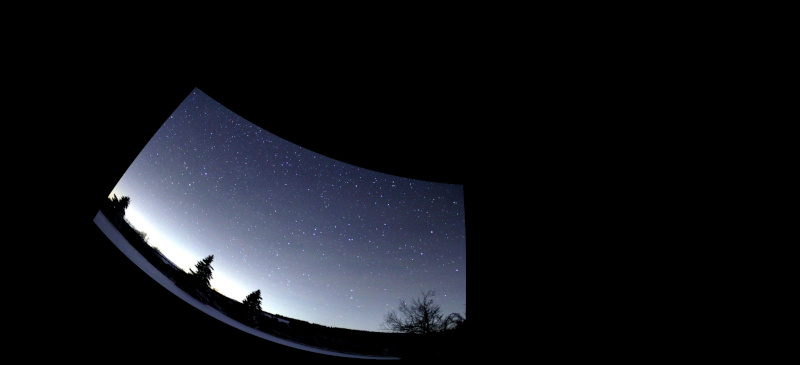

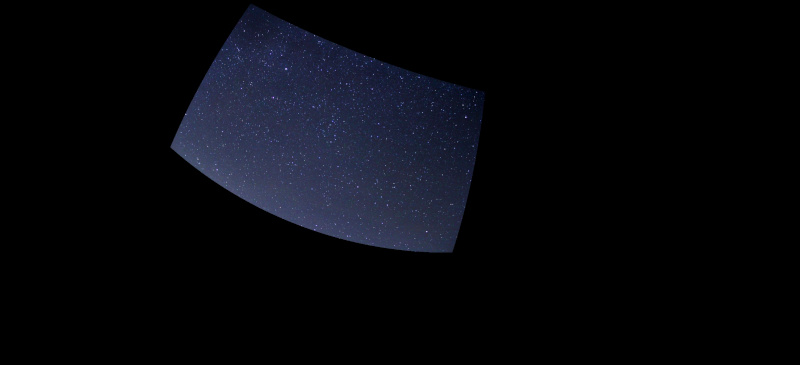

• https://github.com/opencv/opencv/blob/4.x/samples/python/stitching_detailed.py is a great example but not very self-explanatory for someone who hasn't stitched panoramas with OpenCV before. The stitching pipeline presented in stitching_detail.py (comprising feature detection, pairwise image matching, homography estimation, bundle adjustment, waviness correction, image warping, stitching seam estimation and seaming/masking, timelapsing of warped images, blending of warped images) does not provide deep insights into what OpenCV is doing under the hood and what is the result/output of each step. Remedy is provided here: The stitching pipeline presented here is an enhanced version of stitching_detaily.py and offers more documentation within the code and a better understanding of each step within the stitching pipeline due to a lot of image output to disk.

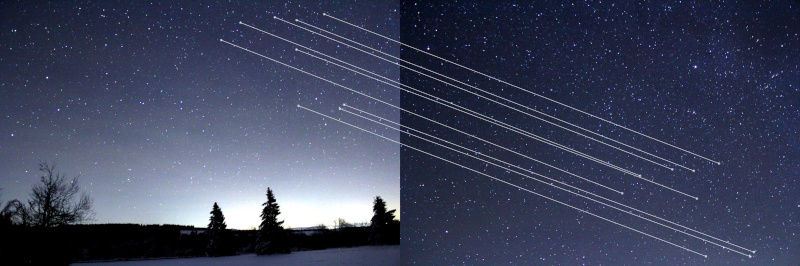

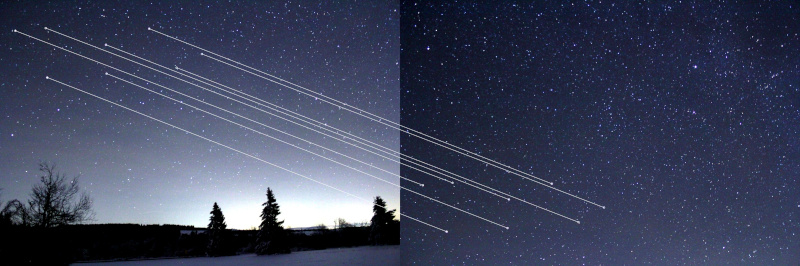

• The matchers used in stitching_detaily.py ( cv.detail_BestOf2NearestMatcher and cv.detail_BestOf2NearestRangeMatcher ) perform poorly on starry sky images. Therefore a custom bruteforce matcher (leveraging cv.BFMatcher(cv.NORM_HAMMING)) is introduced here which returns a tuple of cv2.detail.MatchesInfo objects like cv.detail_BestOf2NearestMatcher and cv.detail_BestOf2NearestRangeMatcher also do.

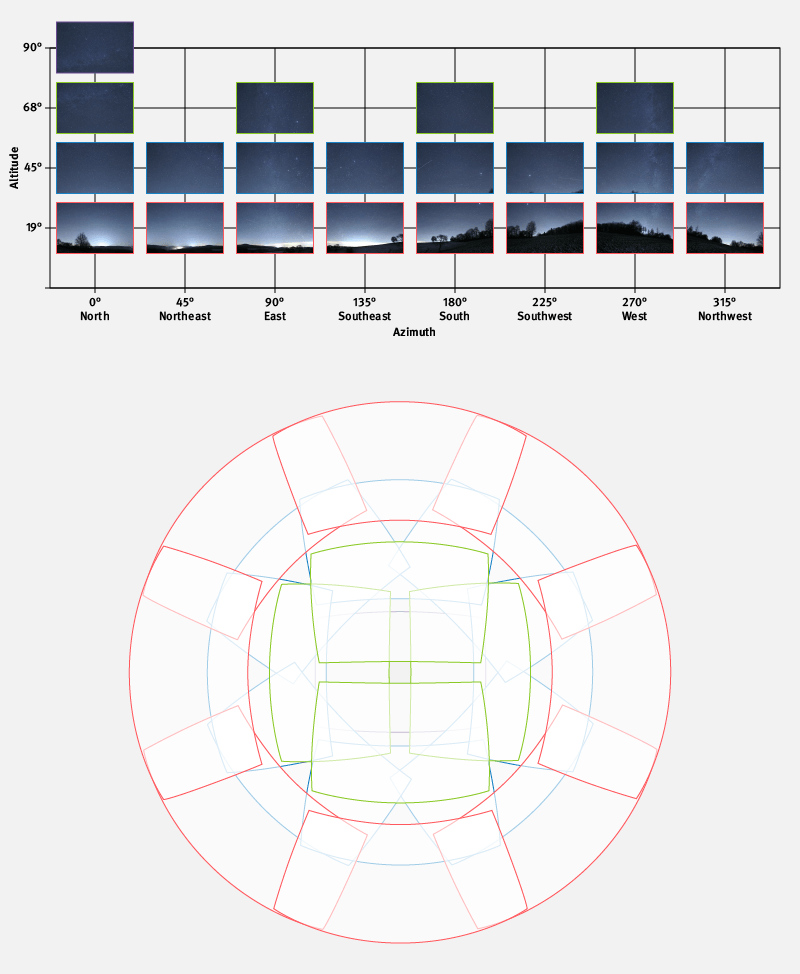

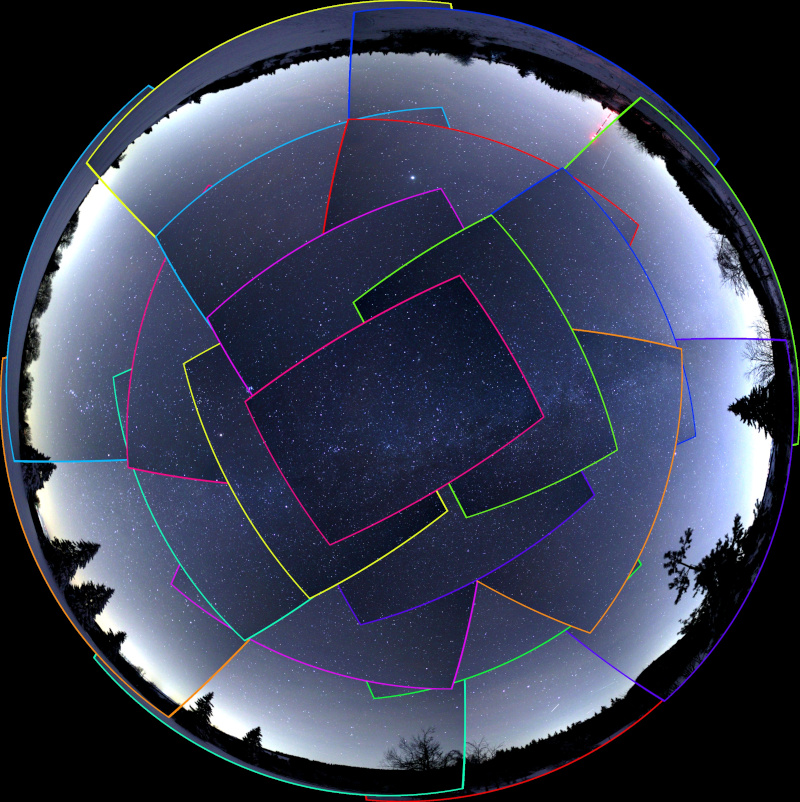

For an all sky fisheye panorama starry sky images should be taken according to a plan.

For an 18 mm lens this setup yields good overlap between the images:

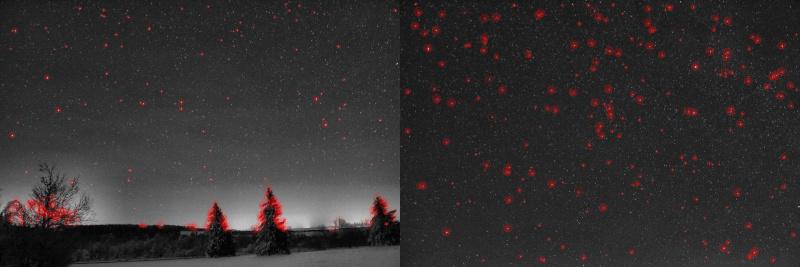

OpenCV matchers can match keypoints/descriptors, which are single points on each image:

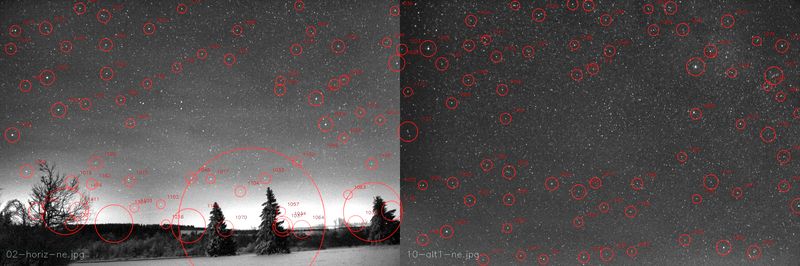

On starry sky images, especially on images with a low amount of stars and a dark unique background, this can become problematic because »many stars look the same«.

Matching star constellations would be helfpful but OpenCV matchers are not able to match constellations – they are just able to match keypoints/descriptors.

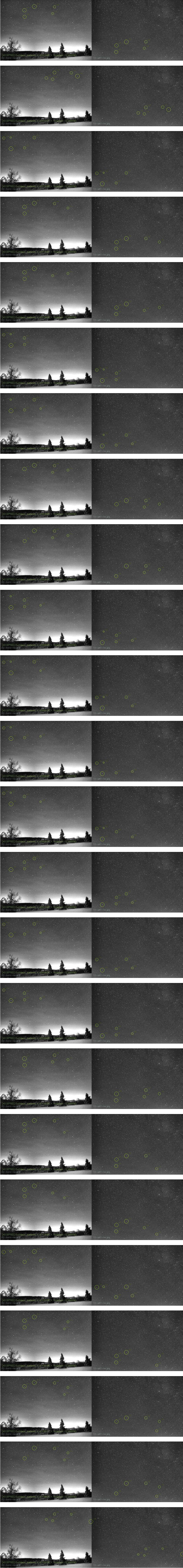

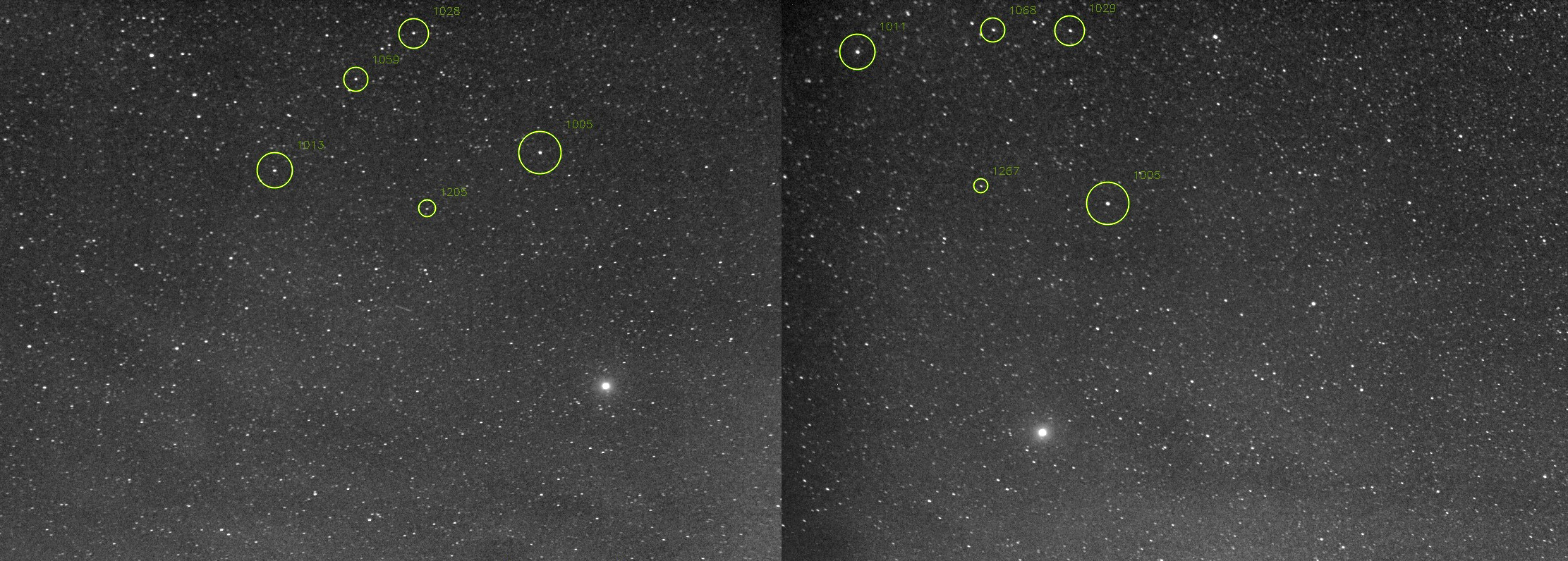

The StarPolygonMatcher presented here provides this functionality:

Star constellations or polygons are compared based on angles, side lengths and star brightnesses.

For a 5-sided polygon like shown above there are 5 vertex angles, 5 side lengths and 5 star brightnesses.

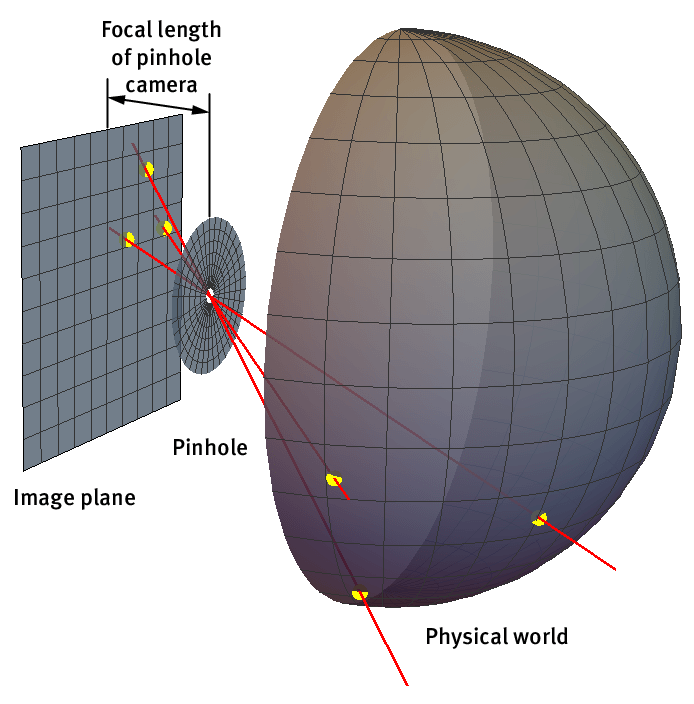

The vertex angles and side lengths are not measured in the image plane ! The stars from the image plane are projected to a sphere in the physical real world. Angles and side lengths are then measured on this sphere leveraging spherical trigonometry. The radius of this sphere does not matter since side lengths of spherical triangles are measured in radian .

cv.detail_BestOf2NearestMatcher (left) and CustomBruteForceMatcher (right) yield comparable results on daylight images.

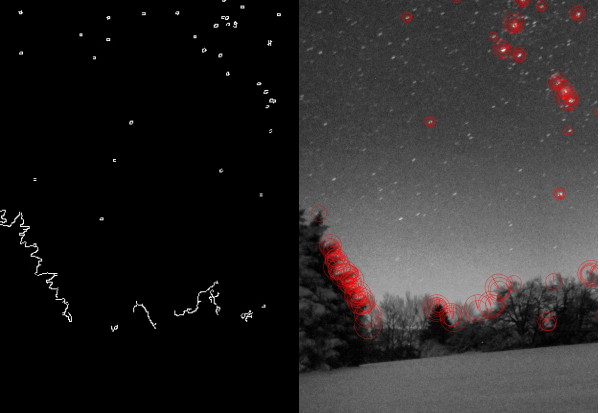

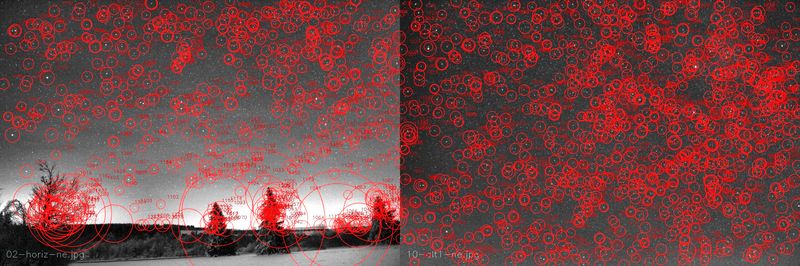

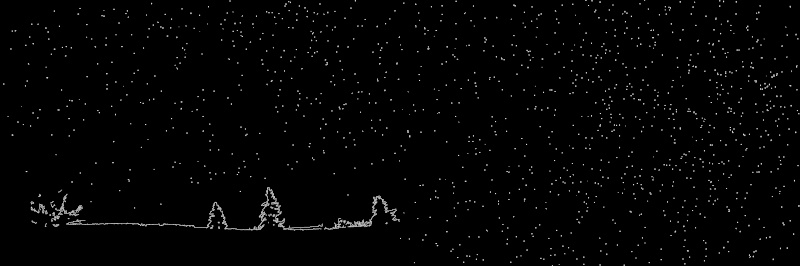

All keypoints created by Canny Edge star detection:

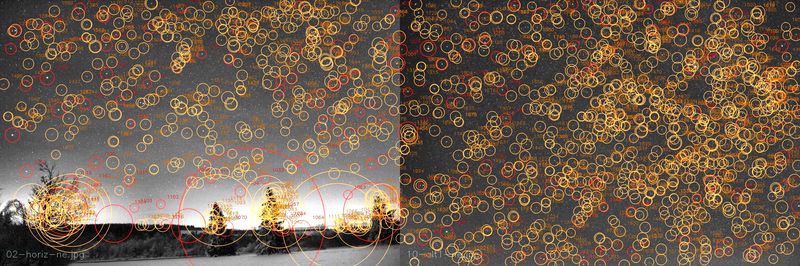

Keypoints marked for deletion after a cluster size of 15 stars per image region was defined:

The remaining stars after clustering:

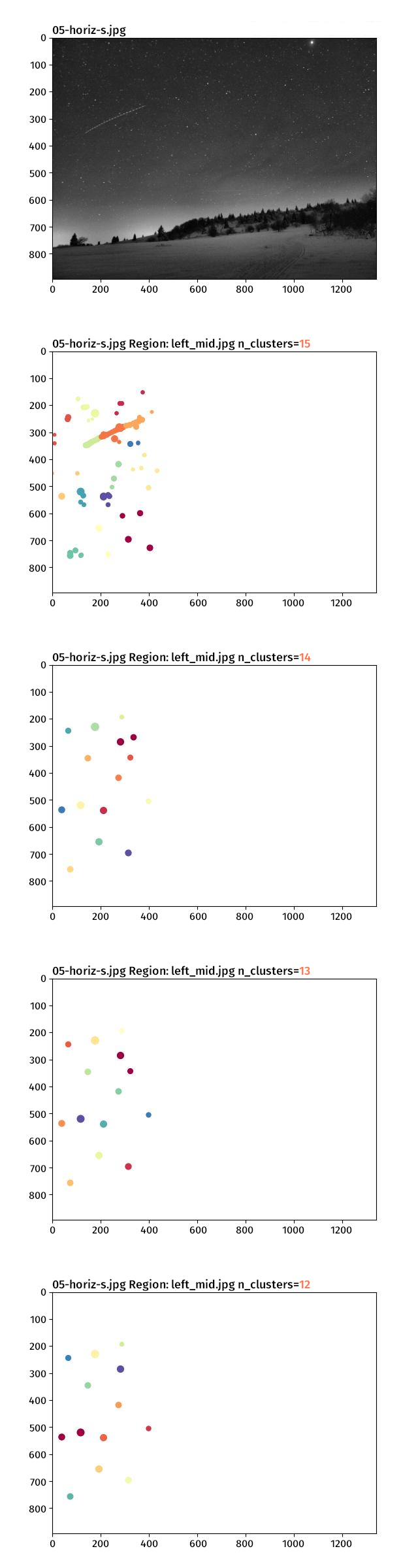

Star amount was reduced by splitting the image in several regions and reducing the size of clusters per region simultaneously by sklearn.cluster.AgglomerativeClustering :

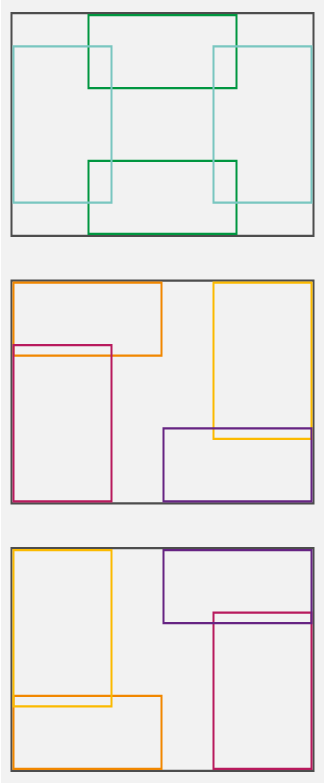

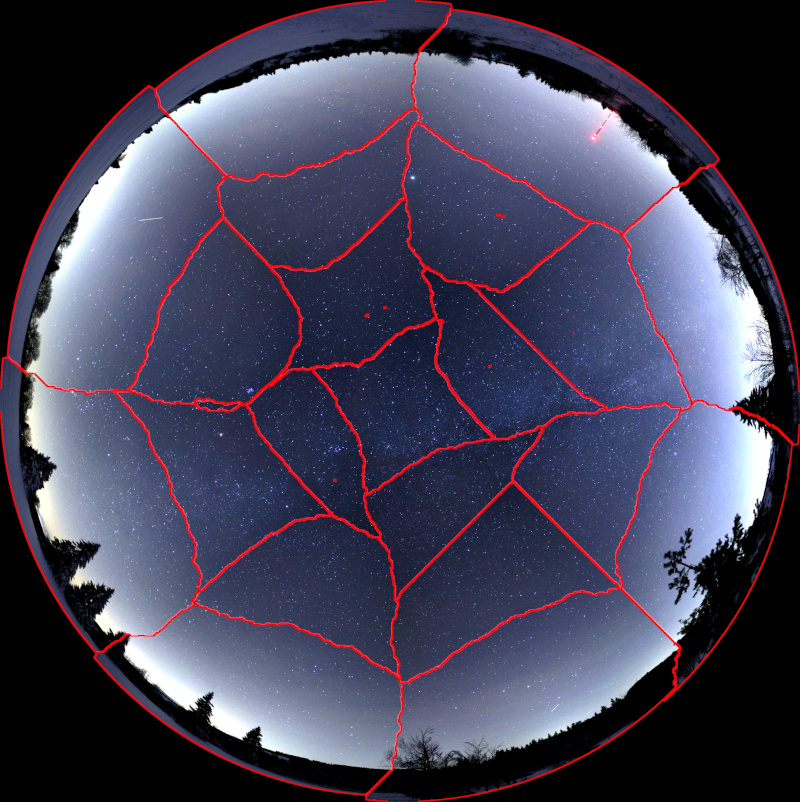

The 12 image regions used for star clustering are:

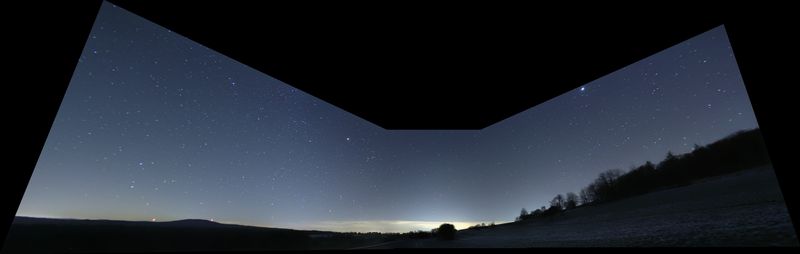

Plane

Spherical

Affine

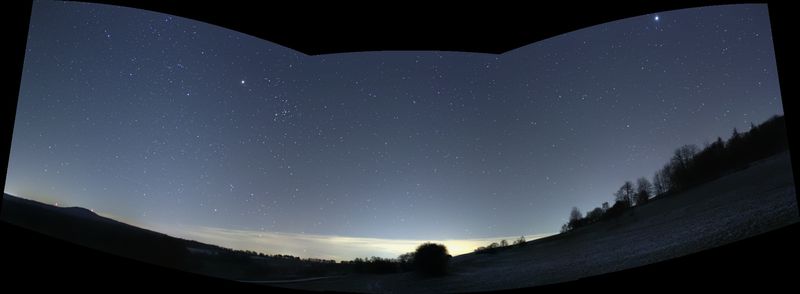

Cylindrical

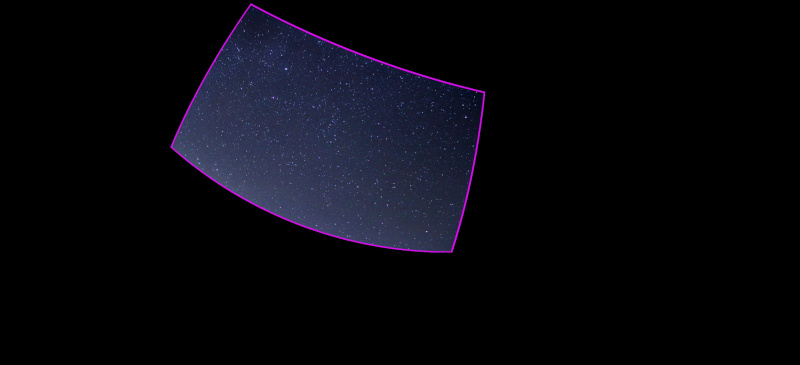

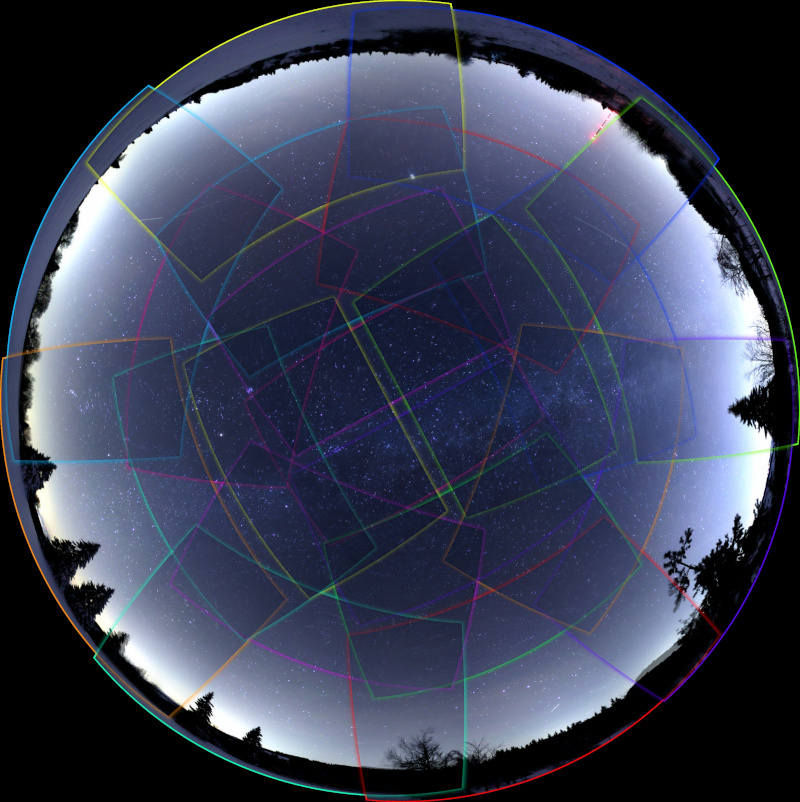

Fisheye

Stereographic

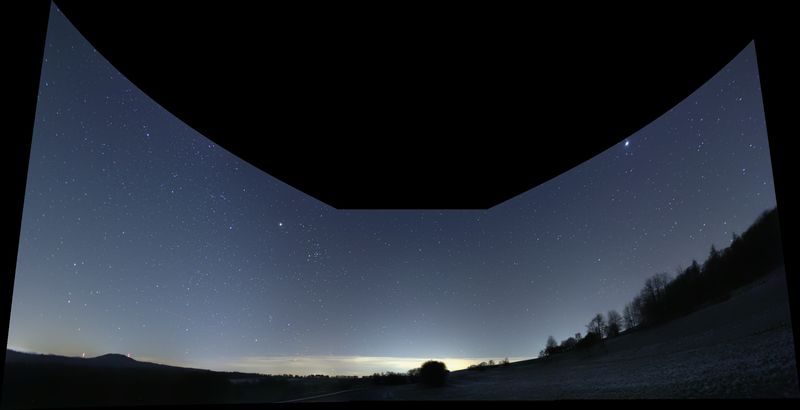

CompressedPlaneA2B1

CompressedPlaneA1.5B1

Paninia2B1

Paninia1.5B1

Mercator

TransverseMercator

0°

90°

...

• Consider image distortion . Take some chessboard images and remove image distortion. Does this yield better polygon matching results?

• Add multiprocessing for these (now consecutive) pipeline steps: Star regcognition, star amount reduction by sklearn.cluster.AgglomerativeClustering, polygon measuring

• Drop mistakenly detected stars at the horizon edge.



December 2022

Joachim Broser
